PCP-CM

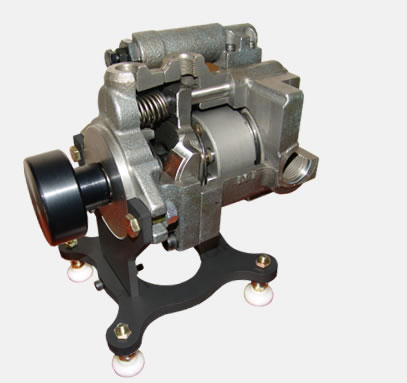

Axial Piston, Variable Volume, Pressure-compensated Pump

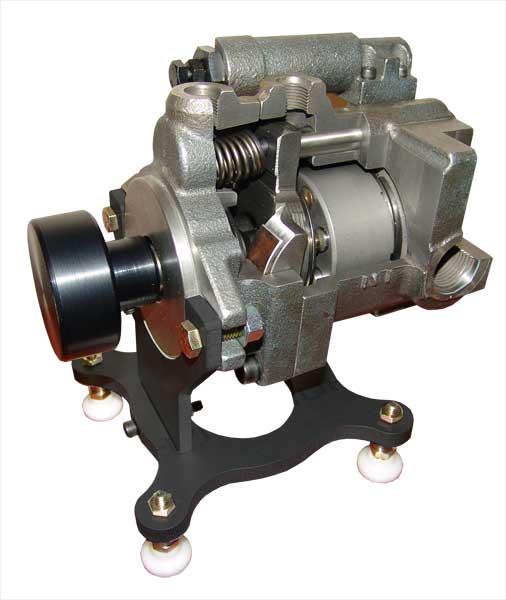

This superbly handcrafted, fully-functional cutaway model features amazing detail.

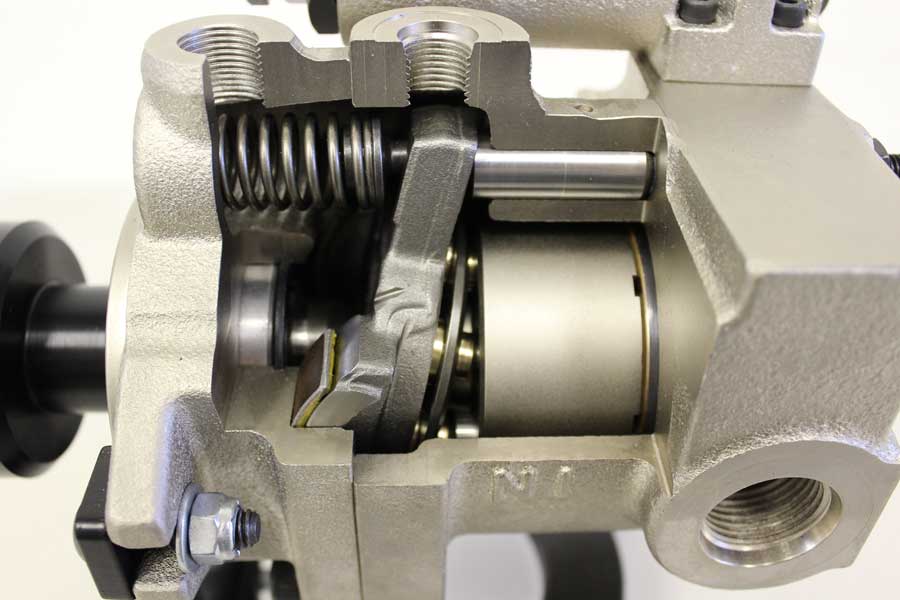

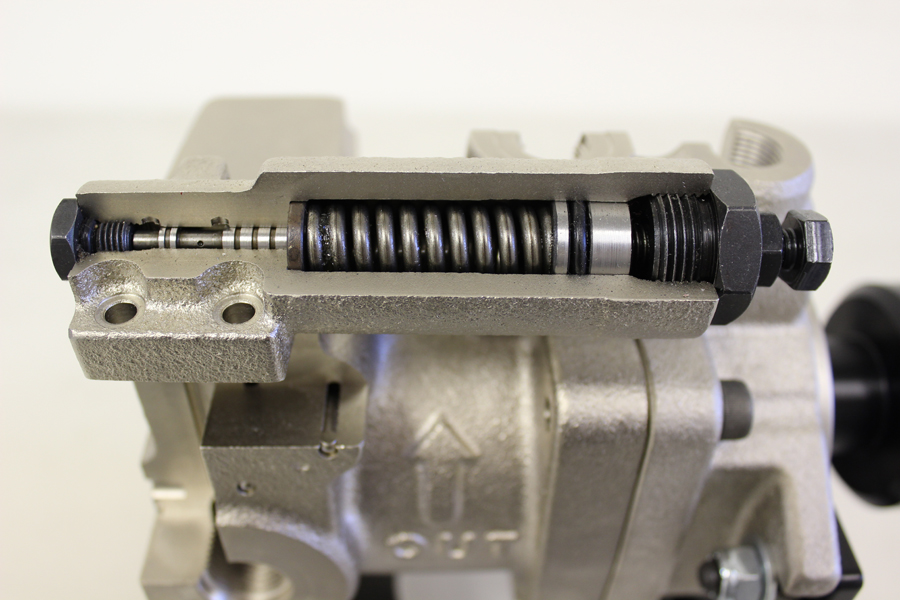

The body is cutaway to expose all the internal parts. The barrel is also cutaway to expose the pistons. Even the pressure compensator is cutaway to show how the compensator works, and also how it communicates with the moveable swashplate.
